Conveyers

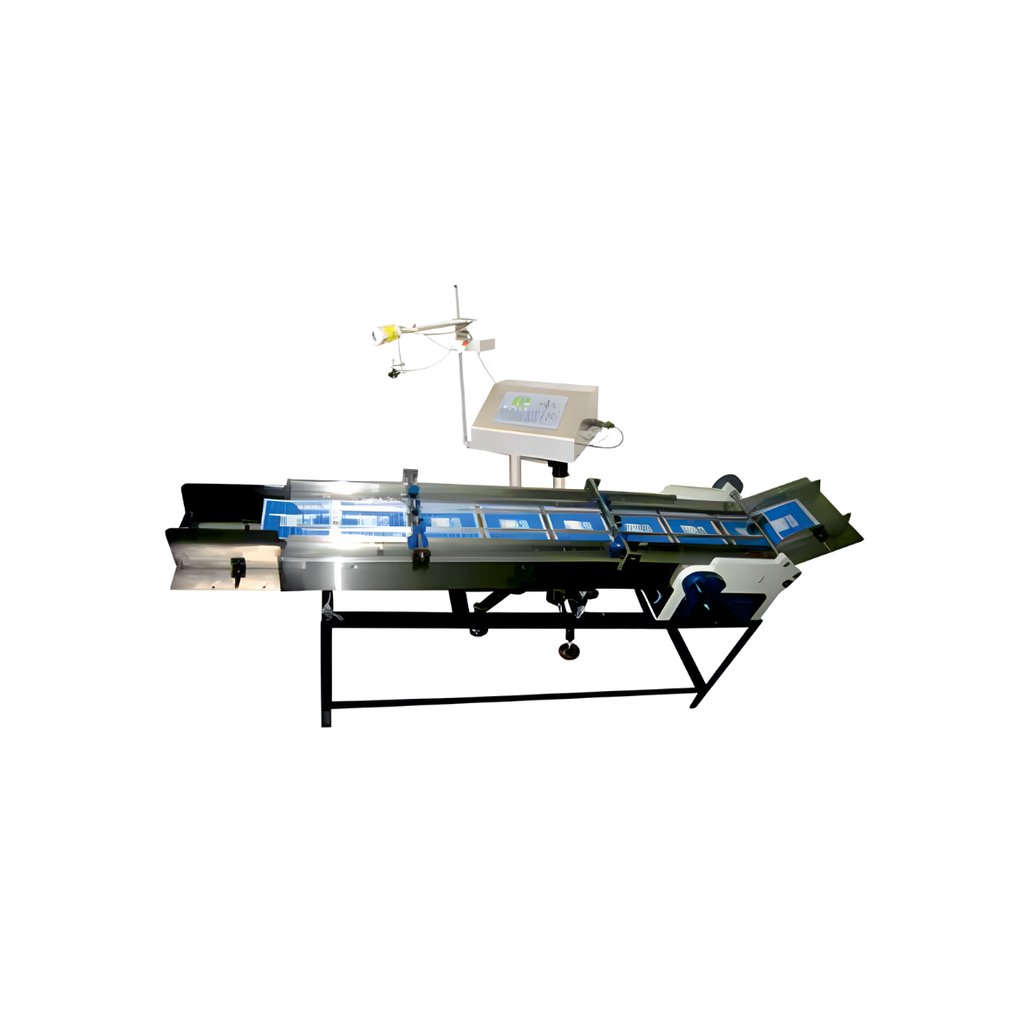

High Speed Stacker Conveyer

Our High Speed Stacker Conveyor to optimize the end of your production line by neatly organizing and stacking finished pouches or cartons at high velocities. This system allows us to help you maintain a continuous, organized workflow, preventing bottlenecks and significantly reducing the manual labor required for packaging and sorting.

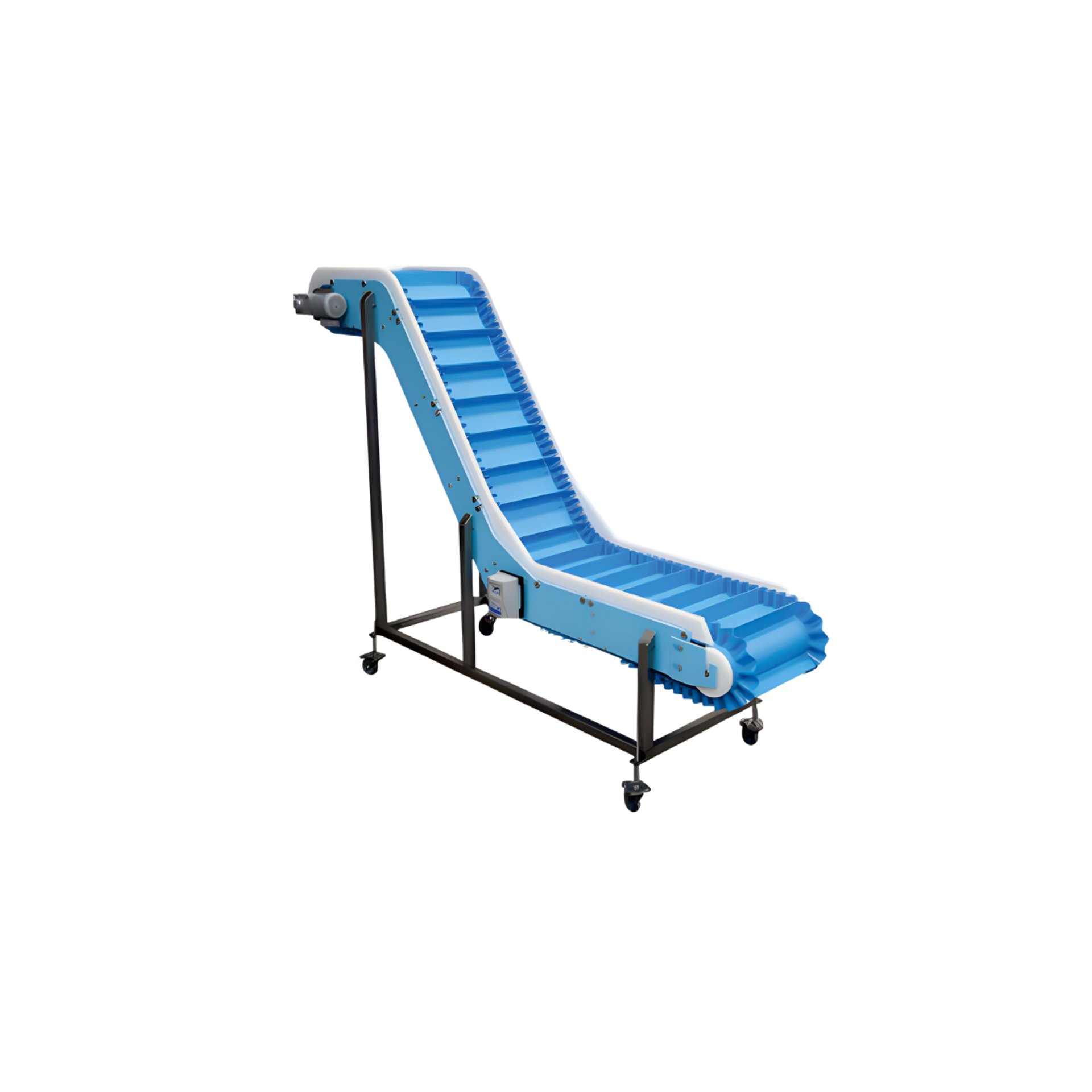

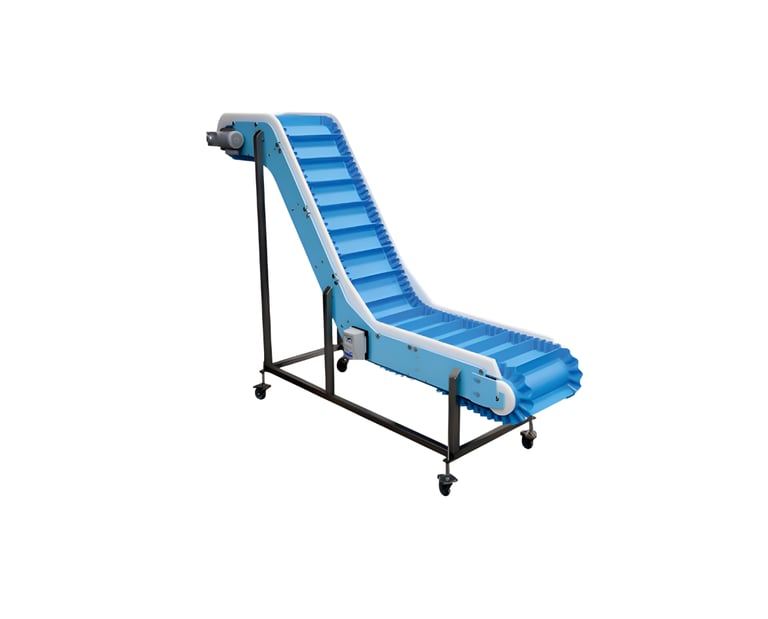

Loading Conveyers

Our Loading Conveyor is designed to streamline material handling and ensure a smooth, continuous flow of products across your production or packaging line. Built for durability and operational efficiency, it minimizes manual handling while improving productivity and workplace safety.

Ideal for loading, transferring, and feeding products into machines, this conveyor system is a reliable solution for various industrial applications.

High Speed Stacker Conveyor Specifications

• Usage: We recommend this system for stacking finished pouches, sachets, or small cartons coming from high-speed VFFS or flow-wrap machines.

• Production Speed: This system maintains a high throughput of 60 to 120 units per minute, synchronized with your primary packaging equipment.

• Conveyor Type: Equipped with a Food-Grade PVC or Modular Link Belt featuring high-friction cleats to prevent product slippage.

• Stacking Mechanism: Features a pneumatic or servo-driven stacking arm to ensure precise and uniform alignment of every unit.

• Adjustability: Fully adjustable guide rails and stack heights to accommodate various product dimensions and packaging formats.

• Power Requirements: The unit operates on AC 220 V / 50 Hz with a power load of approximately 0.75 KW to 1.5 KW.

• Construction: Built with a robust Stainless Steel 304 frame, ensuring hygiene and durability in demanding industrial environments.

Loading Conveyer Specifications

• Conveyor Type: Belt / Roller (customizable based on application)

• Belt Material: PVC / PU / Rubber (depending on product type)

• Length: Customizable (typically 2 to 10 meters)

• Width: 300 mm to 1000 mm

• Height Adjustment: As per requirement

• Speed: Variable (controlled via VFD)

• Load Capacity: Up to 50 kg per meter (can be customized)

• Power Supply: 220V / 380V, 50 Hz

• Frame Material: Mild Steel (MS) / Stainless Steel (SS)
